Polyimide Tape is made from high-performance polyimide film coated with heat-resistant silicone adhesive. It offers excellent temperature resistance, electrical insulation, chemical resistance, and dimensional stability. The tape is widely used for PCB masking, electrical insulation, battery insulation, wire wrapping, and other high-temperature industrial applications.

Technical Specifications

Backing Material	Polyimide Film
Adhesive	Silicone Adhesive
Thickness	0.025~0.20mm

Key Advantages

Excellent Temperature Resistance: The polyimide film and silicone adhesive provide reliable performance in high-temperature applications.
Reliable Electrical Insulation: Provides excellent dielectric insulation for wires, coils, circuit boards, batteries, and electrical components.
Good Chemical Resistance: Offers good resistance to many chemicals while maintaining dimensional stability during processing and operation.

Applications

Electronics and PCB Manufacturing: Used for PCB masking, soldering protection, and electronic component protection.
Electrical and Battery Insulation: Suitable for wire wrapping, coil insulation, transformer insulation, motor insulation, and battery applications.
High-Temperature Industrial Processing: Used for high-temperature masking, surface protection, fixing, and insulation during industrial manufacturing.

Frequently Asked Questions

What is Polyimide Tape used for?

It is commonly used for electrical insulation, PCB masking, battery insulation, wire wrapping, and high-temperature industrial applications.

Is Polyimide Tape suitable for high-temperature applications?

Yes. Polyimide film offers excellent thermal stability. The actual operating temperature depends on the specific product grade and adhesive system.

Classificações & Revisão

Avaliação Geral

5.0

Com base em 50 avaliações para este fornecedor

Instantâneo da Avaliação

A seguir, a distribuição de todas as classificações

5 estrelas

100%

4 estrelas

3 estrelas

2 estrelas

1 estrelas

Todos os comentários

Luca

Italy Mar 5.2026

Ajuda (1)

They offer a wide variety of tapes, so you can get everything you need in one place.

Anil

India Jan 23.2026

Ajuda (1)

Thanks to UN.Tex for recommending the models I needed. They're diligent and responsible.

F*z

Saudi Arabia Oct 23.2025

Ajuda (1)

UN.Tex's tape is really good quality, so you can totally trust both their products and their supply.

Etiquetas:

fita de esparadrapo do filme do Polyimide 25um,

Categoria da fita adesiva H do filme do Polyimide,

Fita de alta temperatura do único polyimide revestido lateral

Produtos recomendados

Isolação de alta temperatura cortada da fita do silicone do Polyimide do ESD

Contacte agora

Fita de esparadrapo 25um do filme do Polyimide da isolação térmica 60um

Contacte agora

Fita adesiva 25um 60um do Polyimide mecânico alto da força

Contacte agora

Fita adesiva Amber Transparent do único filme revestido lateral do Polyimide

Contacte agora

Fita de alta temperatura do único Polyimide revestido lateral da categoria de H

Contacte agora

Lado cortado da categoria da fita adesiva H do filme do Polyimide o único não revestiu nenhuma liberação

Contacte agora

Fita tomada partido dobro resistente de alta temperatura 25um do Polyimide

Contacte agora

detalhes dos produtos

produtos

Fita adesiva da isolação

Fita da isolação de pano de vidro

Fita resistente ao calor da isolação

Fita adesiva de pano de vidro

Fita adesiva do filme do Polyimide

Fita de esparadrapo da folha de alumínio

Fita de pano de vidro da folha de alumínio

Papel Kraft Folhado

Pano da fibra de vidro da folha de alumínio

Fita do Scrim da folha

Fita adesiva de pano

Fita adesiva tomada partido dobro

Fita adesiva do ANIMAL DE ESTIMAÇÃO

Carcaça de investimento da precisão

Tabela de isolamento elétrico

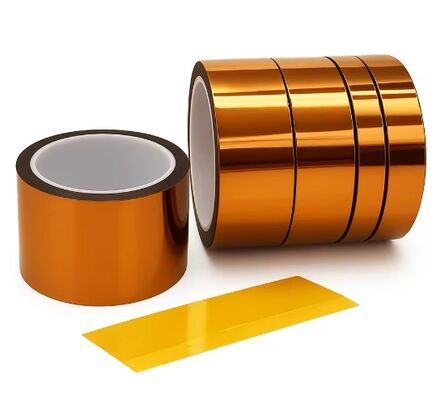

High Temperature Polyimide Tape For Electrical Insulation

Preço:	based on size and quantity
Embalagem padrão:	caixas e paletes
Período de entrega:	Aproximadamente 20 dias
Método de pagamento:	T/T

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem

China

Marca

UNTEX

Documento

UN_TEX - 251 PI silicone ad...pe.pdf

Material de apoio:

Filme do Polyimide

Adesivo:

Adesivo de silicone

Cor:

Âmbar

Grossura:

0,025 ~ 0,20 mm

força de casca:

2,6N/10mm

Resistência à tracção:

45~74N/10mm

Alongamento:

50%

Temperatura. Faixa:

-73~300℃

Preço:

based on size and quantity

Detalhes da embalagem:

caixas e paletes

Tempo de entrega:

Aproximadamente 20 dias

Termos de pagamento:

T/T

Descrição do produto

High Temperature Polyimide Tape for Electrical Insulation

Technical Specifications

Backing Material	Polyimide Film
Adhesive	Silicone Adhesive
Thickness	0.025~0.20mm

Key Advantages

Excellent Temperature Resistance: The polyimide film and silicone adhesive provide reliable performance in high-temperature applications.
Reliable Electrical Insulation: Provides excellent dielectric insulation for wires, coils, circuit boards, batteries, and electrical components.
Good Chemical Resistance: Offers good resistance to many chemicals while maintaining dimensional stability during processing and operation.

Applications

Electronics and PCB Manufacturing: Used for PCB masking, soldering protection, and electronic component protection.
Electrical and Battery Insulation: Suitable for wire wrapping, coil insulation, transformer insulation, motor insulation, and battery applications.
High-Temperature Industrial Processing: Used for high-temperature masking, surface protection, fixing, and insulation during industrial manufacturing.

Frequently Asked Questions

What is Polyimide Tape used for?

It is commonly used for electrical insulation, PCB masking, battery insulation, wire wrapping, and high-temperature industrial applications.

Is Polyimide Tape suitable for high-temperature applications?

Yes. Polyimide film offers excellent thermal stability. The actual operating temperature depends on the specific product grade and adhesive system.
